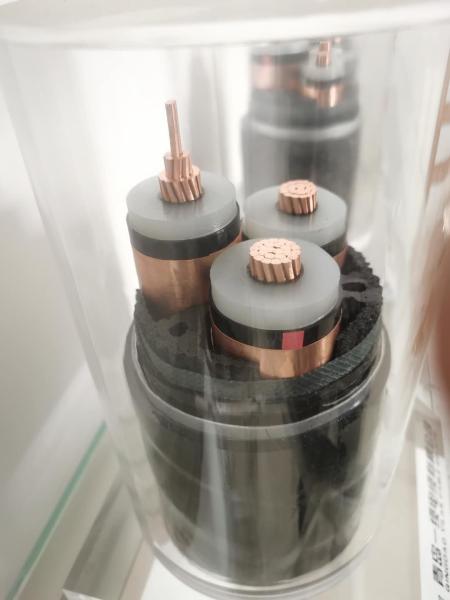

Copper Conductor XLPE Insulated Electric Power Cables

Brand Name : HOLD-ONE

Certification : CE/IEC/KEMA/VDE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100km per Month

Delivery Time : 8-15 days

Packaging Details : Iron-wooden Drum or Whole Wooden Drum

Name : Copper Conductor Cable

Conductor Material : Copper

standard : IEC 60502-1

Outer Sheath : PVC

Color : Customized

Type : XLPE Underground Cable

Contact Now

XLPE Insulated Electric Power Cables

XLPE Insulated Cable Application

XLPE insulated power cables are suitable for power transmission and distribution systems with a rated voltage up to 15kV. For fixed installation in the open air, it is buried directly in the cable trough. Steel tape armored (STA) cables can withstand mechanical forces but cannot withstand large tensile forces. Steel armored (SWA) cables can withstand mechanical forces and tensile forces.

Rated voltage: 0.6 / 1kV, 1.8 / 3kV, 3.6 / 6kV, 6 / 6kV, 6 / 10kV, 8.7 / 10kV, 8.7 / 15kV

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Feature of product

Excellent electrical and physical properties-less electrical transmission loss and energy saving.

The ability to carry large current-higher operating temperature.

Higher strength and stability-resistance to thermal deformation, stress cracking and thermal aging.

Easy to install-no line layout restrictions, no terrain or height restrictions.

Maintenance-free-up to 60 years of service life.

Our advantage

Only use high-quality XLPE insulation materials.

Mass production provides you with competitive prices.

Free samples and OEM are provided.

Construction

Conductor: Annealed copper or tinned copper-
Round solid copper wire IEC 60228 Class 1 (RE)-
Round stranded copper wire IEC 60228 Class 2 (RM)
-Sector-shaped twisted copper wire IEC 60228 Class 2 (SM)-
Round flexible copper wire IEC 60228 level 5
Conductor shielding layer: semi-conductive tape or semi-conductive extrusion
Insulation layer: XLPE
Insulation shielding layer: semi-conductive tape or semi-conductive extrusion or/and copper tape
Inner cover: filler and tape wrapped or extruded
Metal armor: galvanized steel tape (STA) or galvanized steel wire (SWA)
Sheath: PVC or PE
