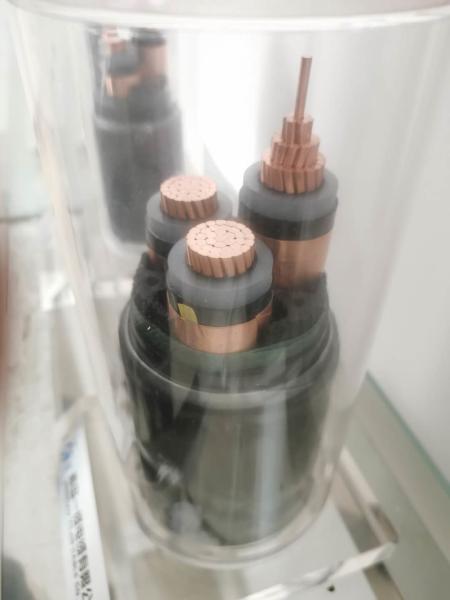

Underground PVC Sheath Armored XLPE Insulated Cable

  • 1
  • 2

Brand Name : HOLD-ONE

Certification : CE/IEC/KEMA/VDE

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100km per Month

Delivery Time : 8-15 days

Packaging Details : Iron-wooden Drum or Whole Wooden Drum

Name : Copper Conductor Cable

Conductor Material : Copper

standard : IEC 60502-1

Outer Sheath : PVC

Color : Customized

Type : XLPE Underground Cable

Contact Now

XLPE shielded outdoor armored cable

Applications:

Public service

Railway stations, road & rail tunnels, public lighting, car parks, public service buildings.

Property & personal safety

Shopping malls, airports, underground rail systems, schools, hospitals, hotels, theatres, churches.

High temperature situation

Foundries, power stations, boiler houses, iron & steel industries, marine & ship buildings.

Potentially explosive area

Refineries, chemical plants, oil & gas production, filling stations, processing plants, garages.

Hygiene situation

Food & drink processing, pharmaceutical works, hospitals, kitchens, refrigeration plants.

General installation

Power distribution & sub circuits, fire alarms & emergency, lifts & escalators lighting, lighting & power.

Underground PVC Sheath Armored XLPE Insulated Cable

Description:

Fire resistant

Will neither burn or support combustion. Comply with the requirements of IEC 60331 and BS 6387.

High operation temperature

Continuous operating temperature up to 250 °C, and for short periods up to approaching the melting point of copper 1083 °C.

Inherent flameproof barrier

With a non-flammable sheath the high compacted insulation will resist the transmission of vapors, gases or flames.

High mechanical strength

Really robust and can withstand a considerable amount of stresses such as, twisting, bending and flattening.

Pliable

Fully annealed and extremely ductile and easily manipulated to follow existing wiring routes and irregular shapes.

Non-ageing, Integral earth continuity, Small overall diameter

Waterproof, Corrosion resistant, Radiation resistant

Excellent electric shielding, Easy installation, Long service life

Physical and Electrical Characteristics

No.cores x Insulation Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139

164

Constructions:

Product Name flame retardant MI cable BTTZ/BTTQ/BTLY fireproof mineral insulated cable
Product standard DIN VDE 0295 and IEC 228 standard twisted copper wires,GB5023.6-2012 and company standard

Core 1 2 3 4 5 3+1 3+2 4+1 Cores

Working life <25years

Type of conductor copper,class 5

Material of conductor fine strands of oxygen-free Copper

Material of insulation mineral compound (MgO)

Color of core insulation Red/White/Blue/Black/Green/Yellow(Optional)

Material of Sheath low smorke halogen free Polyolefine(LSZH/LSOH PO)

Voltage 600~1000 VOLTS

Advantage Down to depths 500 mtrs

Section 0.25mm2~95.00mm2/AWG1~AWG14

Minimum bending radius Cable installtion allowed bending radius should no less than 6 times of cable wideth

Flame resistance pass GB/T18380.1-2001 test and GB5023.6-2012

Isolated sheath Aluminum(AL)
