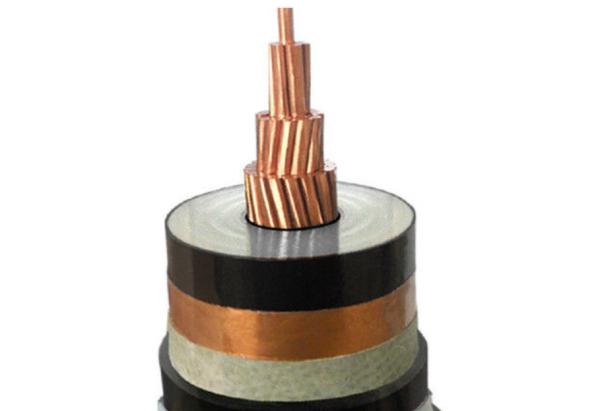

Three Core Copper Conductor XLPE Insulated Medium Voltage 11kV Power Cable

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Code name:

YJ: XLPE insulation
V: PVC sheath
32:Steel wire armoring—3 cores
22:Steel tape armoring—3 cores
72: Aluminum wire armoring—1 core
62: Stainless steel tape armoring—1 core
ZR: Flame resistant

Application

Used for power transmission and distribution line with voltage rated at 35kV and below.
High and Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain.

Standard

International: IEC 60502, IEC 60228
China: GB/T 12706
Other standards such as BS, DIN and ICEA upon request


Technical data:

Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D.

Approx.

Weight

Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating
mm2 pc/mm mm mm (mm) kg/km Ω /km kV/5min In air (A) In soil(A)
1 × 25 7/2.14 3.4 2 20.0 598 0.727 21 140 150
1 × 35 7/2.52 3.4 2 22.0 719 0.524 21 175 180
1 × 50 10/2.52 3.4 2 23.0 884 0.387 21 205 215
1 × 70 14/2.52 3.4 2 24.0 1097 0.268 21 260 265
1 × 95 19/2.52 3.4 2 26.0 1378 0.193 21 315 315
1 × 120 24/2.52 3.4 2 28.0 1658 0.153 21 365 360
1 × 150 30/2.52 3.4 2 30.0 1967 0.124 21 415 405
1 × 185 37/2.52 3.4 2 31.0 2335 0.0991 21 475 455
1 × 240 48/2.52 3.4 2 34.0 2908 0.0754 21 565 530
1 × 300 61/2.52 3.4 2 36.0 3507 0.0601 21 645 595
1 × 400 61/2.97 3.4 2.5 39.0 4503 0.0470 21 750 680
1 × 500 61/3.23 3.4 2.5 42.0 5479 0.0366 21 865 765
1 × 630 61/3.50 3.4 2.5 48.0 6952 0.0283 21 990 860
1 × 800 91/3.20 3.4 2.6 52.0 7120 0.0221 21 1140 950
1 × 1000 91/3.75 3.4 2.8 57.0 10500 0.0176 21 1250 1040
3 × 25 7/2.14 3.4 2.3 41.0 895 0.727 21 120 125
3 × 35 7/2.52 3.4 2.4 44.0 2293 0.524 21 145 155
3 × 50 10/2.52 3.4 2.5 46.0 2812 0.387 21 175 180
3 × 70 14/2.52 3.4 2.6 50.0 3508 0.268 21 220 220
3 × 95 19/2.52 3.4 2.7 53.0 4402 0.193 21 265 265
3 × 120 24/2.52 3.4 2.8 56.0 5319 0.153 21 305 300
3 × 150 30/2.52 3.4 2.9 59.0 6309 0.124 21 350 340
3 × 185 37/2.52 3.4 3.0 62.0 7319 0.0991 21 395 380
3 × 240 48/2.52 3.4 3.2 68.0 9218 0.0754 21 470 435
3 × 300 61/2.52 3.4 3.4 72.0 11159 0.0601 21 535 485
3 × 400 61/2.97 3.4 3.6 81.0 15107 0.0470 21 610 520
