IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

Qingdao Yilan Cable Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

Brand Name : QINGDAO YICABLE CABLE

Certification : ISO,CE,IEC,KEMA

Place of Origin : China

MOQ : 500 meters

Price : US$ 0.5~56 / meter

Payment Terms : L/C, T/T

Supply Ability : 10000 Kilometer per Week

Delivery Time : a week or 10 days

Packaging Details : Wooden drums

Model type : Low Voltage Copper Power Cable

Conductor : Copper

Sizes : 6 ~ 1000 SQMM

Cores : 4

Insulation : XLPE

Warranty : Two years

Sheath : PVC

Insulation material : PVC

Packing : Drums

Armour : Steel Wire Armored

Contact Now

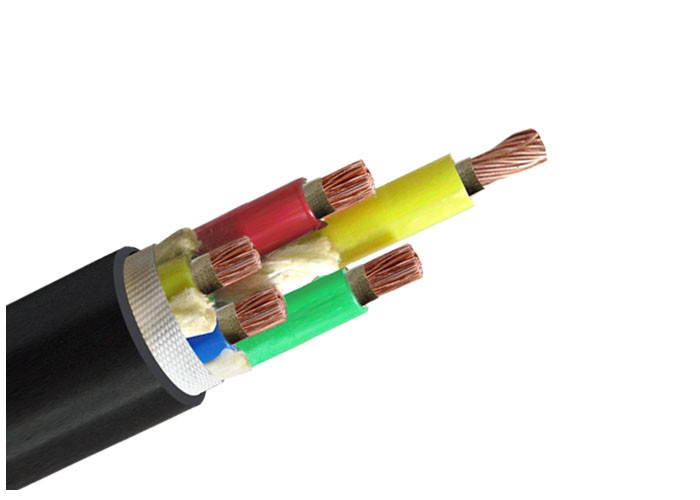

4 core Copper MIca Xlpe PVC Fire-resistant Electric Cable


Applications
This product is applicable to shafts, water and soil, able to bear the larger positive pressure, with power frequency rated voltage of 1kV and below.
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces.


Application Standards

International: IEC 60502, IEC 60228, IEC60332

China: GB/T 12706 1-2008

Other standards such as BS, DIN and ICEA upon request

Manufacture Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS,DIN and ICEA upon request

Constructions

Code : N-YJV
Standarts : TS IEC 60502, IEC 502, VDE 0271, BS 6346
Construction : 1- Solid, Stranded or Flexible Copper Conductor
2.-MICA TAPE
3- XLPE insulation (cross-linked PE) or PVC
4- PVC outer sheath, or PE, LSOH
Application : Preferably for installation indoors, in cable ducts and in industrial plants or
switching stations, underground installation with additional protection where
mechanical damage is unexpected.
Technical Data : Max. operating temperature 90 ºC
Short circuit temperature 250 ºC


Code Designation

YJ: XLPE insulation

V: PVC insulation or sheath

Technical data


Rated voltage: 0.6/1kv VoltageIEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant

IEC Standard XLPE Insulated Power Cable MIca Type PVC Outer Sheath Fire - Resistant
PVC Insulation: Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

XLPE Insulation: Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D



Certificates

ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others at request

PACKING AND SHIPPING

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

Quote Request Information

1. Material of conductor/insulation/sheath.

2. Voltage classes.

3. Cross section, Short circuit current capacity, tension strength.

4. Order Quantity

Our Services

1.We are the one of biggest manufacture of electric wire and power cable in China and has more than 20 years producing and marketing experience.

2.We accept OEM. The cable size and material are customized.Ur own logo and

own design are welcome. We will produce according to your requirement and description;

♦ Please send us inquiry for more products info and we will give you feedback in 12 hours.


FAQ

1. Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc

2. Payment: We accept T/T, L/C , just choose what you like

3. Delivery time: Generally 7~10 working days upon receipt deposit. According to the quantity.

4. MOQ: Generally our MOQ is 1000meters. samples for below 20 centimeter can be provided freely.
